Remak Mobile Application

Remak Mobile Application

The REMAK mobile application is our specialised configuration of the Inthouse application as a platform for mobile control of intelligent houses based on Siemens controllers. It enables basic touch control and monitoring of REMAK VCS control units based on Siemens Climatix controllers using a mobile device (phone or tablet) with Android OS (v. 4.1 or higher) or Apple iOS (v. 12 or higher).

Simplest Control of VCS Control Units and REMAK Air-handling Equipment

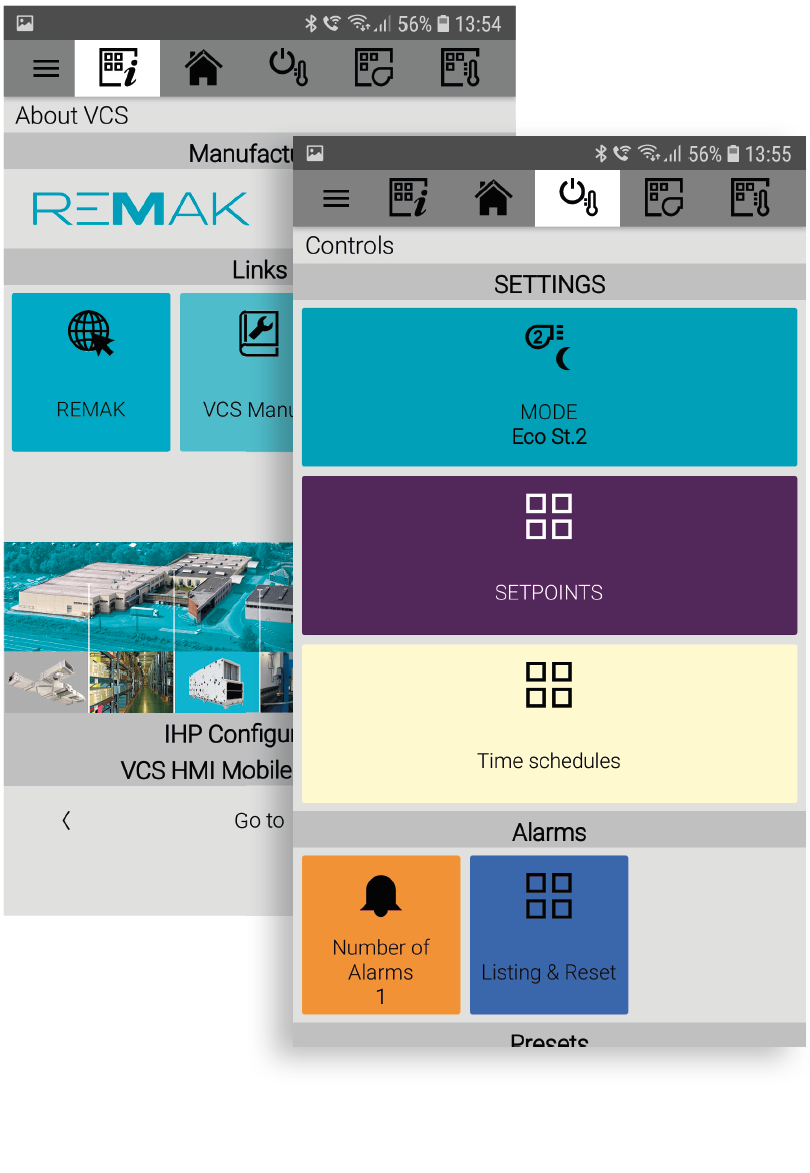

The REMAK mobile application – HMI (controller) for VCS control unit as a mobile application - enables basic touch control and monitoring of VCS control units based on using a mobile device (phone or tablet).

It is an optional addition, resp. extension add-on, to the complex/service remote HMI@ WEB interface (in which the AHU/VCS system must be commissioned).

This application can be downloaded free of charge from Google Play or App Store. Using your mobile device search for "Inthouse" in Google Play or App Store and select "Install". When starting the application for the first time, enter the configuration ID you received with your VCS control unit (please make a distinction between lower and upper case letters).



Basic Features



1) Starting/switching off the device

2) Settings:

- Operating mode

- Ventilation output

- Temperature/humidification mode

- Heating/cooling

- Humidity Limit values of the inlet air temperature/humidity

- Fan outputs

 - Weekly time schedule

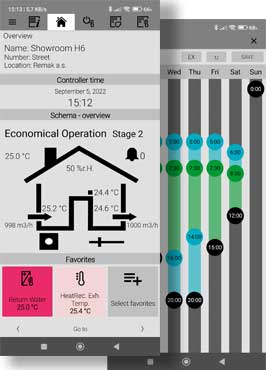

3) Device operation state monitoring

4) Reset of failures (after removal)

5) Direct access to the service HMI@ WEB interface from an internet browser for detailed parameter settings (control coefficients, etc.)

6) Operating mode and function settings

7) Automatic or manual selection of language versions

8) Possibility to switch between multiple air-handling units (control units)

9) Direct linking to the current on-line manual.



We have prepared a DEMO version for you!



Configuration ID: C-DEMO-REMA-K001

When installing the device, you need to use the "Local connection" option.

IP address: gw.remak.cz

Port: 10202

Password PLC (JSON): SBTAdmin!

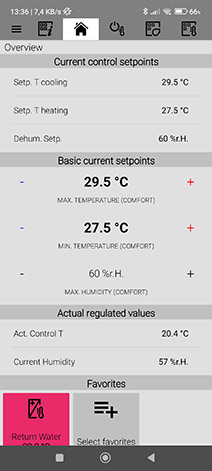

Additional notes for the first version of the iOS app



The iOS application in the current version (No. 3.x…) is not fully identical to the Android application (No. 2.x ...). It contains both certain formal (visual) differences and some functional ones. However, these are insignificant differences or restrictions, which will be gradually implemented in future versions, such as direct links to www.remak.eu and VCS instructions or favorites and data point preferences, or setting / viewing specific calendars (weekly schedule exception days and days off) - only tiles without functionality are displayed. This must be done, for example, via HMI @ WEB, which also does not have a direct link in the application menu and it is necessary to manually open the Internet browser and enter the device address in it.







iOS
